ROLEC WALLPOD : 7.4KW | TETHERED | 5M

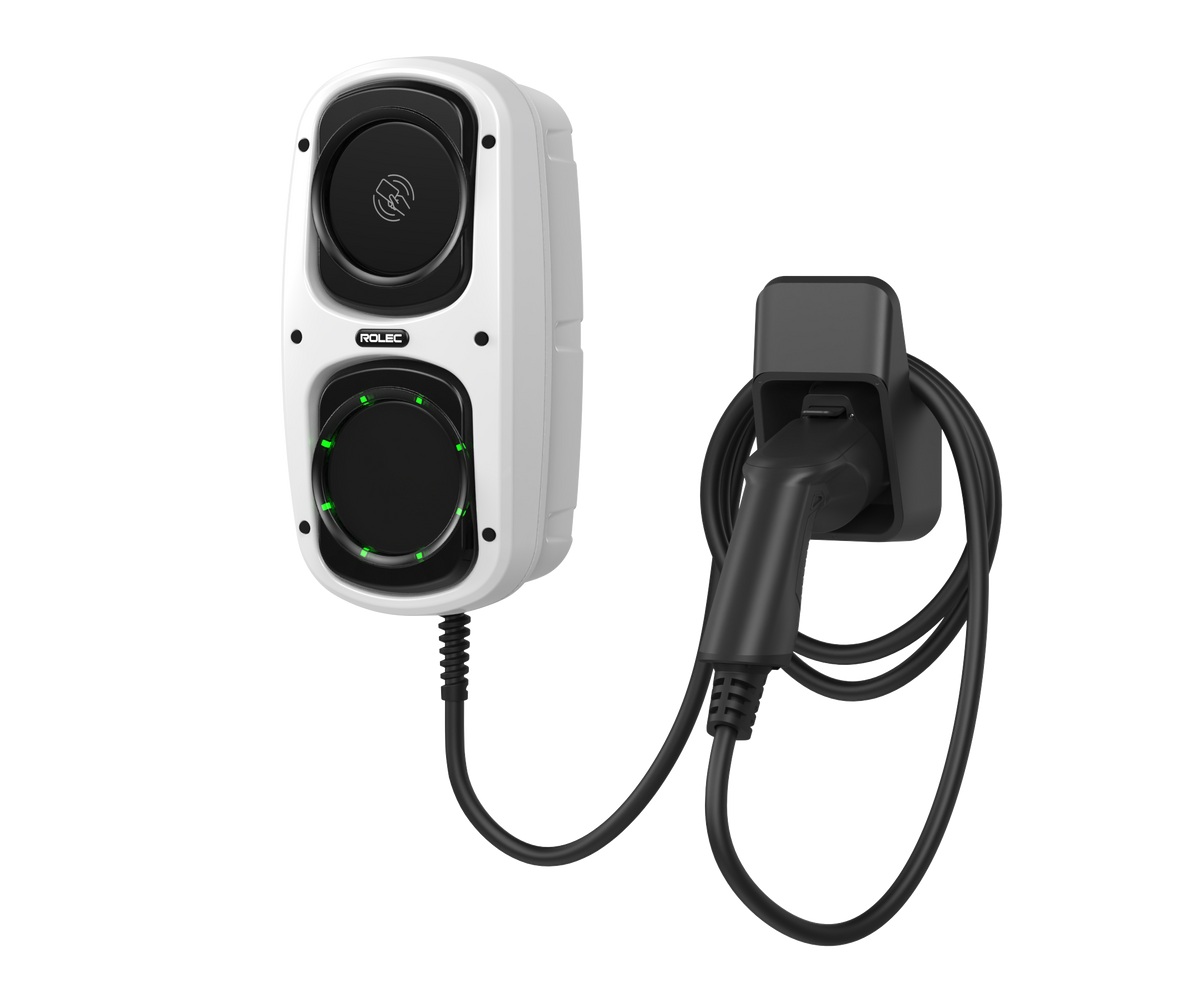

The Rolec WallPod Type 2 is a 7.4kW smart EV charger built for convenient everyday charging at home, work or managed parking locations. Its fixed 5m Type 2 lead keeps charging simple where the vehicle can park close to the unit, while built-in load balancing, RFID access and OCPP connectivity give installers additional control when required.



£993.56
IN STOCK
Up to 7.4kW 32A single-phase charging
Type 2 tethered Cable permanently attached
5m cable Ideal for close-proximity parking
Smart charging RFID, OCPP and multiple connectivity options
i Always check the latest installation instructions before specifying and installing the unit.

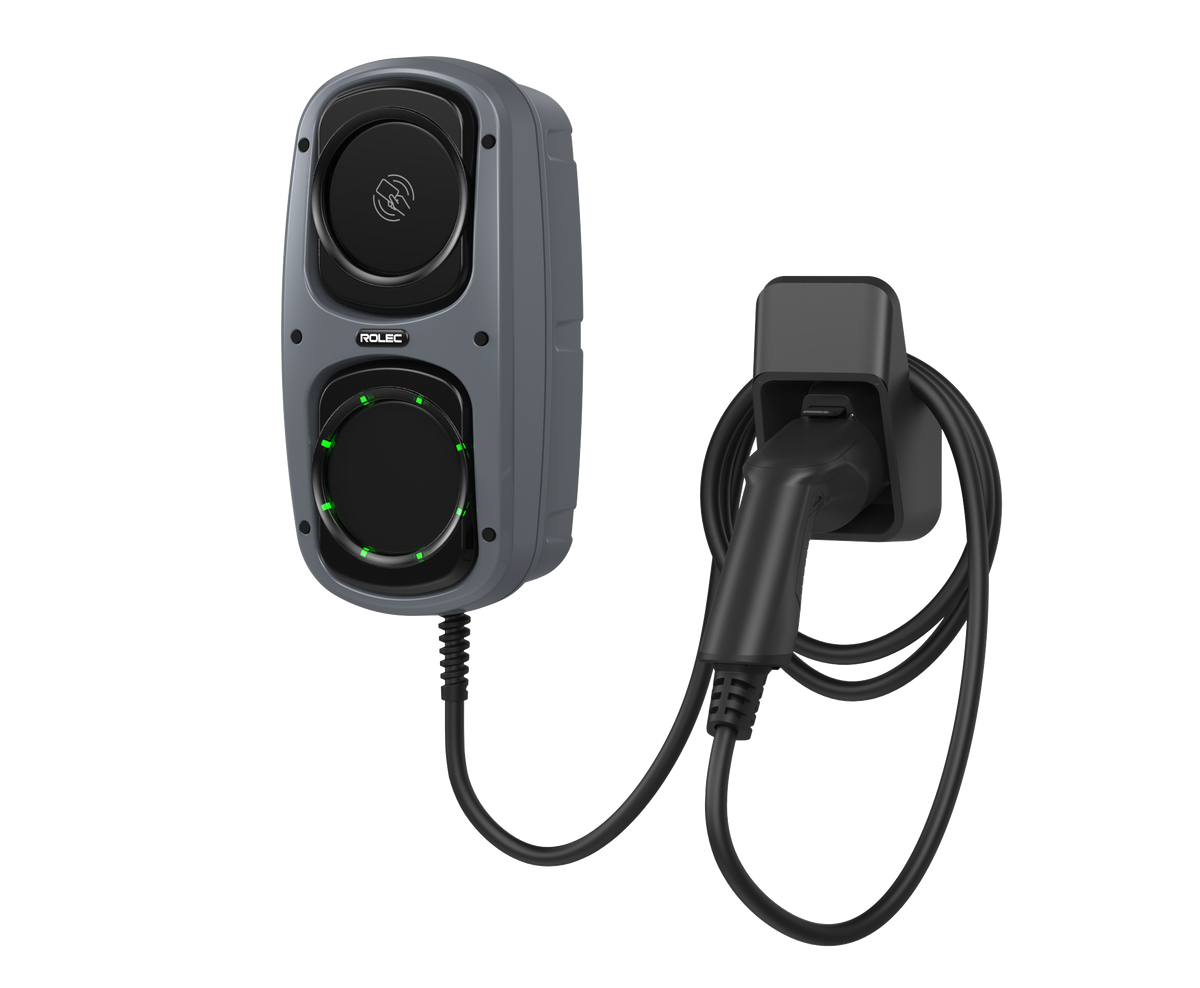

1 Colour: Grey
TRADE PORTAL
American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard PayPal Shop Pay Union Pay USDC Visa
Trade pricing available Access installer pricing through your trade account.
1–3 working day delivery Available within 1–3 working days on most orders.
Ordering multiple units? Our team can help with repeat volume orders.
Unsure which configuration you need?

Tell us about the property, electrical supply, solar PV, mounting position, vehicle, parking layout, required cable reach and your customer’s other requirements.

Speak to our EV Specialists now →
PRODUCT OVERVIEW

Simple tethered charging for vehicles parked close to the chargepoint

The Rolec WallPod Type 2 is designed for installations where simplicity matters. A fixed Type 2 connector is always ready to use, so the driver can park, plug in and begin charging without taking a separate cable from the vehicle.

With a nominal 5m EV charging cable, this model is best suited to driveways, garages, allocated spaces and workplace bays where the charging unit can be installed reasonably close to the vehicle. The shorter the cable can also mean less excess lead to coil, store or route around the parking area between charging sessions.

The charger delivers up to 7.4kW from a suitable single-phase supply and adds a range of smart and installation-focused features beyond basic plug-in charging. Dynamic load balancing can help manage demand at the property, while RFID and OCPP support make the charger suitable for installations where access or chargepoint management needs greater control.

Key features include:

  • Up to 7.4kW / 32A single-phase charging.
  • Permanently attached Type 2 charging lead.
  • Nominal 5m tethered cable.
  • Plug & go operation for simple charging.
  • RFID-controlled access where authorisation is required.
  • OCPP 1.6 compatibility.
  • Dynamic load balancing with CT equipment included.
  • Built-in PME fault detection.
  • Overcurrent and 6mA DC leakage protection.
  • MID-approved energy metering.
  • 4G, Wi-Fi and Ethernet connectivity.
  • Support for compatible solar PV and home-energy integrations.
  • Wall or post installation.
  • Suitable for domestic and commercial environments.
  • Designed and manufactured in the UK.
  • 3-year manufacturer warranty.

Where the 5m Rolec WallPod Makes the Most Sense

Driveways with a Consistent Parking Position

This model works particularly well where the customer normally parks in the same place and the charger can be fitted close to the vehicle's charging port. The 5m lead provides useful reach without introducing unnecessary cable length.

Garages and Side-of-House Installations

For chargers mounted inside a garage or on an external wall beside a driveway, a shorter tethered lead can be easier to manage than a longer alternative. It keeps the charging setup more contained around the unit.

Customers Who Want Plug-In Convenience

A Rolec tethered EV charger removes the need to take a separate cable out of the boot each time the vehicle needs charging. The Type 2 connector remains attached and ready for the next session.

Shared or Controlled Parking Areas

RFID access and OCPP 1.6 make the WallPod suitable for settings where charging should be restricted to approved users or connected to a compatible chargepoint management platform.

Properties with Limited Available Capacity

Dynamic load balancing can adjust charging in response to demand elsewhere at the property. This helps installers design a charging solution around the available electrical supply rather than treating the charger as an isolated load.

Customers Planning Around Home Energy

Where a compatible smart platform is used, the WallPod can form part of a wider setup involving solar PV, battery storage or other renewable generation.
FOUNDERS NOTE

Why I Recommend the 5m Rolec WallPod

“‘Not every installation needs a long charging lead. Where the vehicle parks close to the house or garage, the 5m WallPod keeps things straightforward and gives the customer less cable to manage. You still get the useful installer features behind it, including load balancing, RFID and OCPP connectivity.’

”
Chris Chevalier-Moniz, Founder & CEO of Volta EV
Chris Chevalier-Moniz
TECHNICAL INFORMATION

Product Specification

Category
Specification
Rolec WallPod 5m
Electrical & Performance
Electrical & Performance
Maximum Charging Power
Up to 7.4kW / 32A
Electrical Supply
Single phase, 230V AC, 50/60Hz
Charging Mode
Mode 3
Load Management
Dynamic load balancing
CT Equipment
Included
Protection
Protection
PME Fault Detection
Built in
DC Leakage Protection
6mA DC
Overcurrent Protection
Built in
Additional Protection
Surge and over-temperature protection
Physical Specs
Physical Specs
Connector
Type 2 tethered
Cable
5m nominal tethered lead*
Dimensions
367 × 179 × 142mm
Enclosure
High-impact-resistant polycarbonate
Impact Rating
IK10
Installation
Wall or compatible post
Smart & Connectivity
Smart & Connectivity
4G
Yes
Wi-Fi
Yes
Ethernet
Yes
RFID
Yes
OCPP
OCPP 1.6
App Functionality
Available through compatible management platform
Renewable Integration
Supported through compatible systems**
Metering & Security
Metering & Security
Energy Metering
MID-approved
Security
Tamper and breach notifications
General
General
Colour
Grey shown; other options may be available
SKU
ROLEC4140G
Origin
Designed and manufactured in the UK
Warranty
3 years
INSTALLATION

Plan the Position Before Fitting the Charger

01

Confirm the Cable Will Reach

Start with the parking position rather than the wall.

Identify where the vehicle's charging port sits when parked normally, then select a mounting point that allows the tethered lead to reach comfortably. Because this is the 5m model, correct charger positioning is particularly important.

Also confirm the incoming supply, available capacity and any load-management requirements before installation begins.
02

Install the WallPod

Mount the charger on a suitable wall or compatible Rolec post and complete the electrical connection in line with the current Rolec installation instructions.

Built-in PME fault detection, overcurrent protection and 6mA DC leakage protection form part of the charger's protection package, but the installer remains responsible for specifying the complete circuit and confirming any additional protective requirements.
03

Configure the Smart Functions

Set up the operating method required by the customer. This may be straightforward plug & go charging, RFID-controlled access or connection to a compatible smart charging platform.

Where required, configure the network connection, load balancing and OCPP settings before testing a complete charging session.

At handover, show the customer how to use the tethered lead and where to store or coil it safely between charging sessions.

Buying for repeat installations?

Make repeat orders easier through Volta EV.

Installers

Access trade pricing and repeat ordering through your Volta EV trade account.

Open a Trade Account →

Wholesalers and resellers

Speak to us about repeat supply, larger quantities and product availability.

Discuss a Bulk Order →
COMPLETE THE INSTALLATION

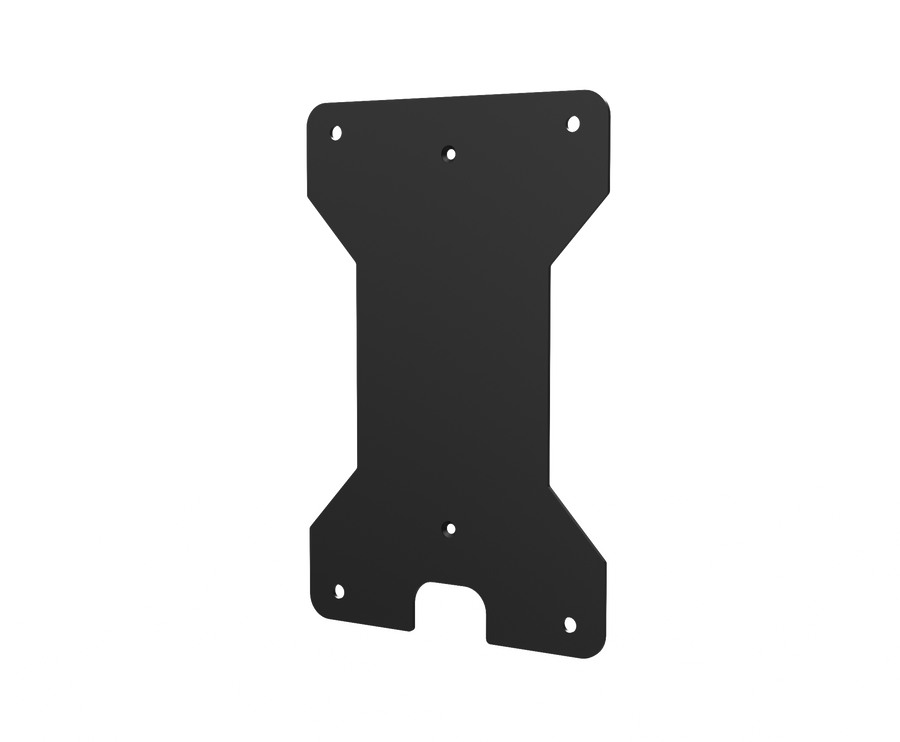

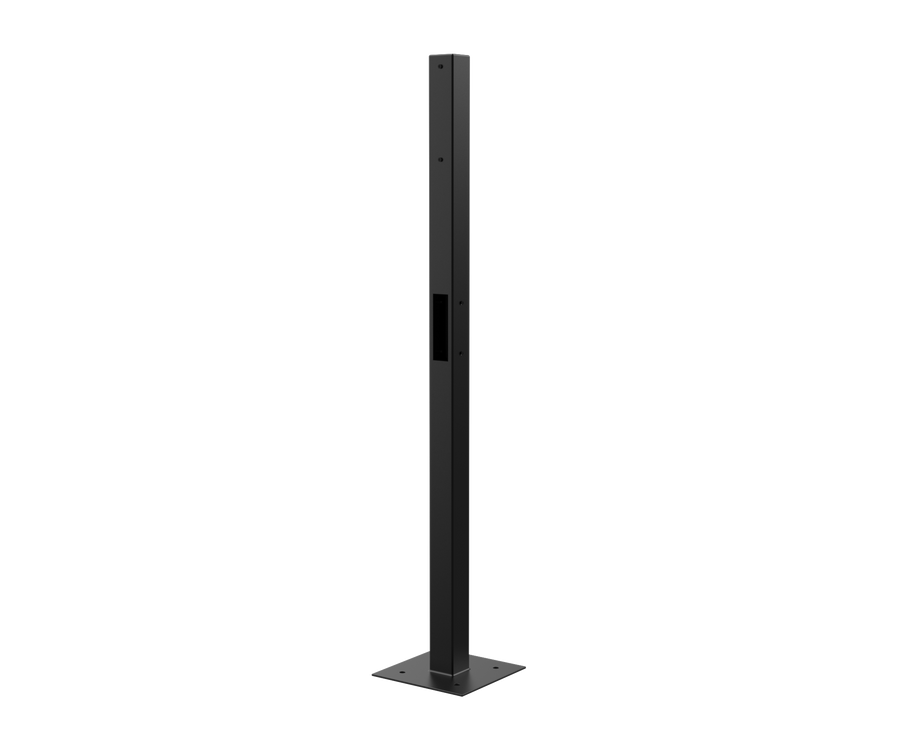

Compatible products and installation accessories

PRODUCT SUPPORT

Frequently Asked Questions

The 5m model is most appropriate when the charger can be installed relatively close to the vehicle.

Typical examples include a driveway beside the house, an integral garage, a dedicated parking space or a workplace bay with the charger mounted immediately alongside it.
