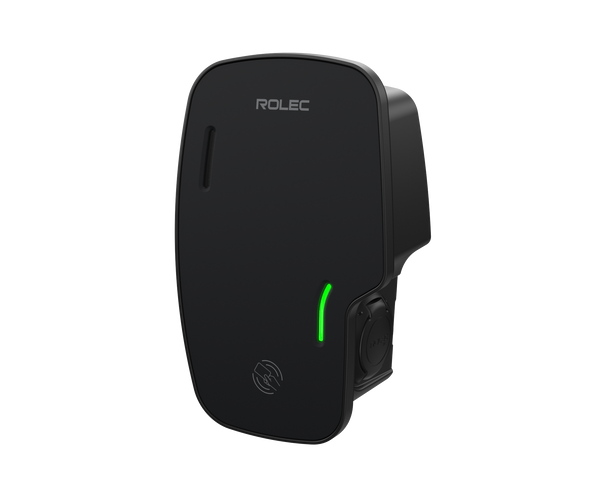

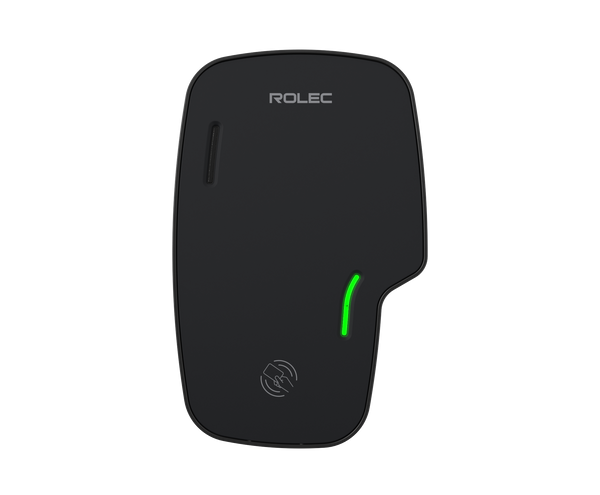

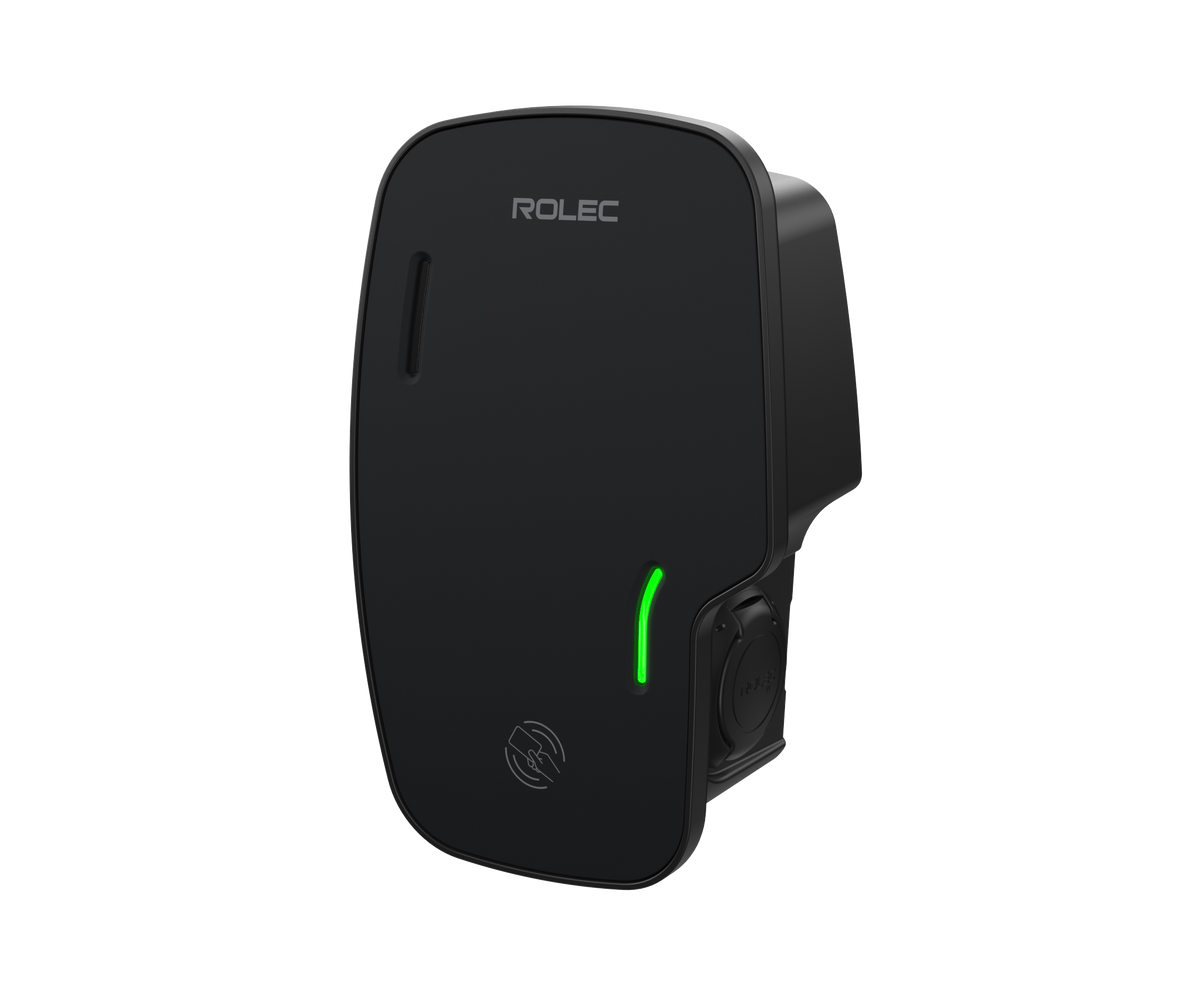

The Rolec Zura 22kW is a three-phase smart EV charger with a universal Type 2 socket for homes, workplaces and commercial sites requiring higher-capacity AC charging. With no permanently attached lead, this Rolec unit lets the user select a compatible charging cable to suit the vehicle and parking layout while retaining OCPP connectivity, RFID access, MID metering and dynamic load management.
£1,055.65
IN STOCK
Up to 22kW / 32AThree-phase charging
Type 2 socketUse a compatible removable cable.
Smart chargingPlug & go / app / RFI.D.
Connected & managed OCPP / 4G / Wi-Fi / Ethernet
iAlways check the latest installation instructions before specifying and installing the unit.
Trade pricing availableAccess installer pricing through your trade account.
1–3 working day deliveryAvailable within 1–3 working days on most orders.
Ordering multiple units?Our team can help with repeat volume orders.
Unsure which configuration you need?
Tell us about the property, electrical supply, solar PV, mounting position, vehicle, parking layout, required cable reach and your customer’s other requirements.
Three-phase smart charging with the flexibility of a Type 2 socket
The Rolec Zura 22kW combines higher-output three-phase charging with a universal Type 2 socket. Connected to a suitable 400V three-phase supply, the charger can provide up to 22kW AC to vehicles capable of accepting that charging rate.
Unlike the tethered Zura, there is no permanently attached lead. The driver connects a compatible charging cable when required and can remove it again after charging. This gives customers control over cable length, makes the charging lead easier to replace independently and leaves the unit free from a fixed cable between charging sessions.
The Zura also suits installations where charging needs to be managed rather than simply switched on and off. Plug & go, mobile app and RFID operation give different approaches to user access, while OCPP 1.6 allows connection with compatible chargepoint management systems.
Key features include:
Up to 22kW / 32A three-phase charging.
Universal Type 2 charging socket.
Suitable for both domestic and commercial installations.

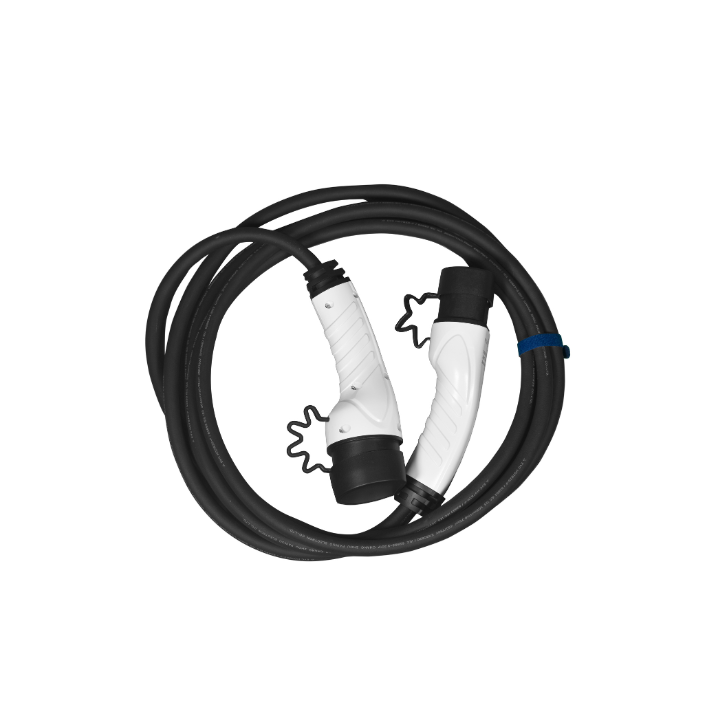

Use with an appropriately rated removable Type 2 charging cable.
Plug & go operation.
Mobile app or RFID-controlled charging.
Cable-locking functionality.
Built-in PME fault detection.
Overcurrent and DC 6mA protection.
Dynamic load balancing capability.

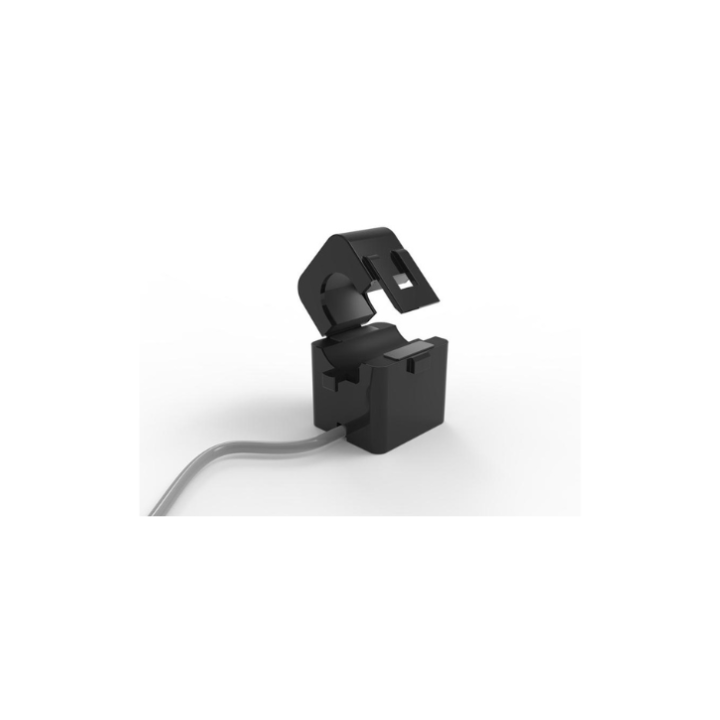

CT clamps and cables required for the appropriate three-phase setup.
Solar PV, battery storage or wind turbine integration through compatible systems.
OCPP 1.6 compliant for integration with compatible CPMS platforms.
Built-in MID-approved energy metering.
Dual tamper and breach security notifications.
4G, Wi-Fi and Ethernet connectivity.
Over-the-air software and firmware updates.
Optional fully customised fascias.
OZEV grant fundable, subject to current scheme eligibility.
Designed and manufactured in the UK.
Backed by a 3-year warranty.
Where the Rolec Zura 22kW Socket Works Best
Three-Phase Homes Wanting a Removable Cable
For homes with a suitable three-phase supply, the socketed Zura provides higher-capacity AC charging without leaving a cable permanently attached to the property.
The customer can select the cable length that suits the driveway, store it separately after charging and replace it independently if required later.
Workplace Charging With User Control
The Rolec Zura is designed for both domestic and commercial installations.
Workplaces and businesses can combine RFID or app-controlled charging with OCPP 1.6 connectivity and MID-approved energy metering to manage access and monitor charging activity through compatible systems.
Shared or Multi-Vehicle Parking
A Type 2 socket provides flexibility where different vehicles use the same charging point.
Users can connect their own suitability-rated charging cable, making the Zura useful in workplaces, shared residential parking and other multi-user environments.
Sites Requiring Load Management
Dynamic load balancing allows charging demand to be managed around other electrical loads at the property.
The appropriate CT clamps and cables need to be included in the installation design when load balancing is required.
Properties With Renewable Generation
The Zura can support integration with solar PV, battery storage or wind turbine systems through compatible smart charging platforms.
This allows charging to form part of a wider site-energy strategy rather than operating independently from renewable generation.
Branded Commercial Locations
Optional fully customised fascias make the Zura suitable for locations where visual identity matters.
Businesses, developers and charging operators can use customised finishes to align chargers with wider site branding.
FOUNDERS NOTE
Why I Recommend the Rolec Zura 22kW Socket
“‘The socketed Zura gives installers a lot of flexibility. You get 22kW three-phase capability without committing the customer to one fixed cable, while OCPP, RFID, MID metering and load balancing make it equally useful for homes, workplaces and commercial projects.’
”
Chris Chevalier-Moniz, Founder & CEO of Volta EV
TECHNICAL INFORMATION
Product Specification
Category
Specification
Rolec Zura 22kW Socket
Electrical & Performance
Electrical & Performance
Maximum Charging Output
Up to 22kW / 32A
Electrical Supply
Three-phase, 400V AC
Charging Mode
Mode 3
Load Management
Dynamic load balancing
CT Equipment
CT clamps & cables required
Protection
Protection
PME Fault Detection
Built in
Overcurrent Protection
Built in
DC Leakage Protection
6mA DC
Physical Specs
Physical Specs

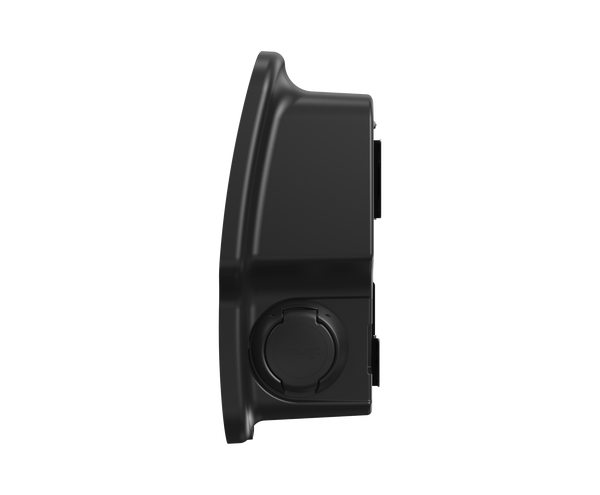

Connection
Type 2 universal socket
Charging Cable
Separate cable required

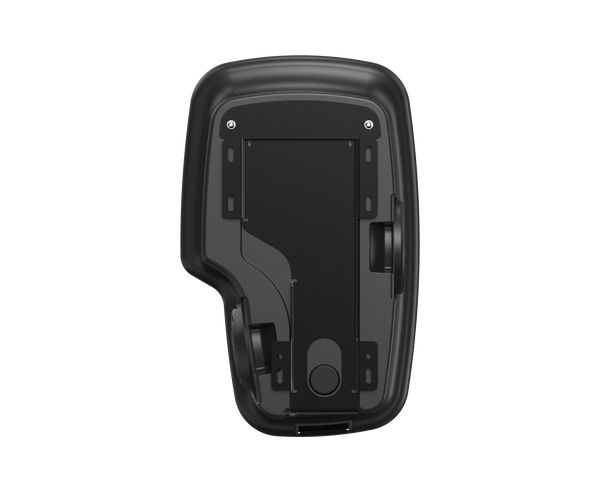

Mounting
Wall or compatible post
Smart & Connectivity
Smart & Connectivity
Plug & Go
Yes
Mobile App
Through compatible platform
RFID
Yes
4G
Yes
Wi-Fi
Yes
Ethernet
Yes
Smart Protocol
OCPP 1.6
CPMS Integration
Supported
Solar PV Integration
Supported*
Battery Storage
Supported*
Wind Generation
Supported*
Metering & Security
Metering & Security
Energy Metering
MID-approved
Security
Dual tamper & breach notifications
General
General
Fascia
Optional fully customised fascias
OZEV
Grant-fundable **
SKU
ROLEC3046B
Manufacture
Designed & manufactured in the UK
Warranty
3 years
INSTALLATION
Specify the Supply, Cable and Smart Functions Together
01
Check the Three-Phase Supply
Confirm that the property has a suitable three-phase electrical supply and enough available capacity for the required charging output.
The vehicle's onboard AC charger should also be checked because a vehicle limited to 7.4kW or 11kW will not use the full 22kW available from the charger.
Because this model uses a socket, it also measures the distance between the proposed mounting point and the vehicle so a suitable Type 2 cable can be selected.
02
Design the Charging Circuit
Install the Rolec Zura on a suitable wall or compatible mounting post and complete the circuit in accordance with Rolec's latest instructions.
Built-in PME, overcurrent and DC 6mA protection form part of the charger, but the qualified installer remains responsible for the complete electrical design.
Where dynamic load balancing is required, include the appropriate CT clamps and cables in the installation specification.
03
Configure Charging and Connectivity
Choose the charging method required by the customer or site operator.
The Zura Socket can operate using:
plug & go;
a compatible mobile app; or
RFID-controlled charging.
For managed installations, connect the unit through 4G, Wi-Fi or Ethernet and configure the selected OCPP 1.6-compatible CPMS.
Confirm MID metering, load-management settings, renewable-energy integration and user access before completing the handover.
Buying for repeat installations?
Make repeat orders easier through Volta EV.
Installers
Access trade pricing and repeat ordering through your Volta EV trade account.
Yes. PME fault protection is built into the charger.
The qualified installer should still confirm the complete earthing and protection arrangement for the installation.
The Zura includes PME, overcurrent and DC 6mA protection.
Additional requirements should be confirmed against the latest Rolec installation instructions.
Yes.
Dynamic load balancing is supported, with CT clamps and cables required as part of the appropriate installation setup.
