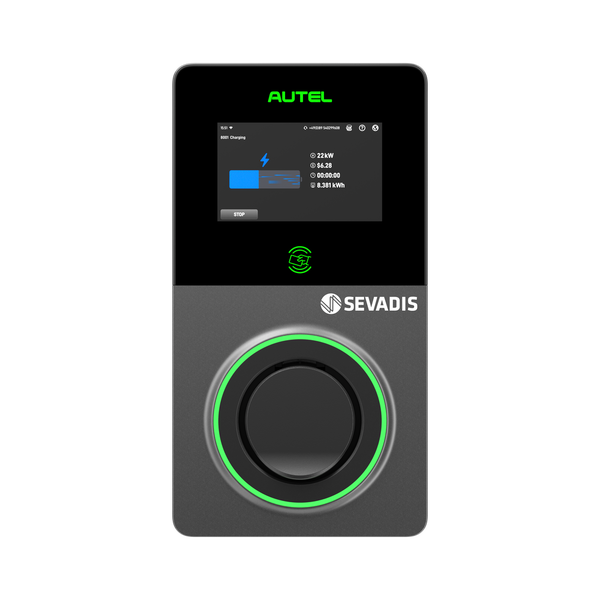

MaxiCharger GEN 2 with LCD Screen multi phase EV charger offers 7.4kW-22kW charging via its universal Type 2 socket.
Complete with an LCD touchscreen, enabling drivers to understand real-time EV charging behaviour and data, as well as providing businesses with the opportunity to utilise the screen for advertising purposes. With built-in PME fault detection, static load management capabilities. Perfect for workplace, shared residential, and fleet environments. Featuring onscreen charging insights, MID metering, and seamless back-office integration
for energy and cost control.
Product Features
- Charging rate: 7.4kW-22kW (single or 3-phase)
- Connector type: Socket (Type 2)
- Integrated 6mA DC + 30mA AC leakage detection
- PME fault detection
- MID Meter built-in
- LCED Screen built-in
- App enabled
- Connectivity: Wifi, Ethernet, Bluetooth & 4G*
- *Sim Card to be purchased separately
- OCPP1.6J & OCPP2.0.1
- APP, RFID card, QR code enabled
- Weather rating: IP54
- Weight: 3.2Kg
- Colour: Black and Grey
- Dimensions: H315xW170xD117mm
- CE and UKCA certified
- Warranty: 3 Years
