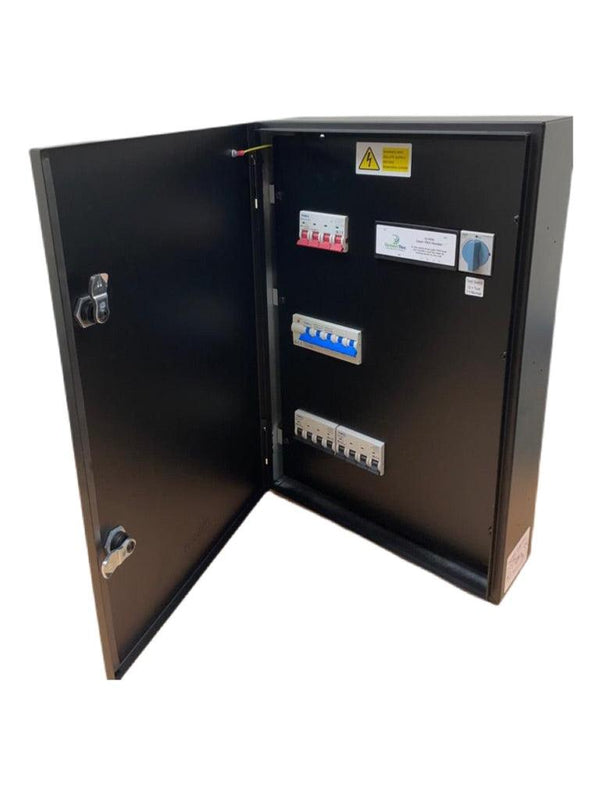

MATT:E AUTOMATIC RESET CONNECTION UNIT: 2x 32A TPN MCBs

The ARD connection centre with built-in O-PEN® technology, allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes. To facilitate compliance with BS:7671. 2018 Amendment 1, 2020 Regulation 722.411.4.1.(iii). The matt:e ARD connection centre incorporates the unique 5 pole auto reset device that automatically restores power to the load once the fault has cleared.

PRODUCT FEATURES

• Built in O-PEN® technology
• No earth electrodes required
• Simple wire in wire out connection
• Phase loss protection
• For 2x 32A three-phase loads
• 2x 32A TPN MCBs
• Material: Mild steel IP4X enclosure
• Weight: 7KG
• Dimensions: H550mm x W360mm x D120mm
• Warranty: 1 Year
