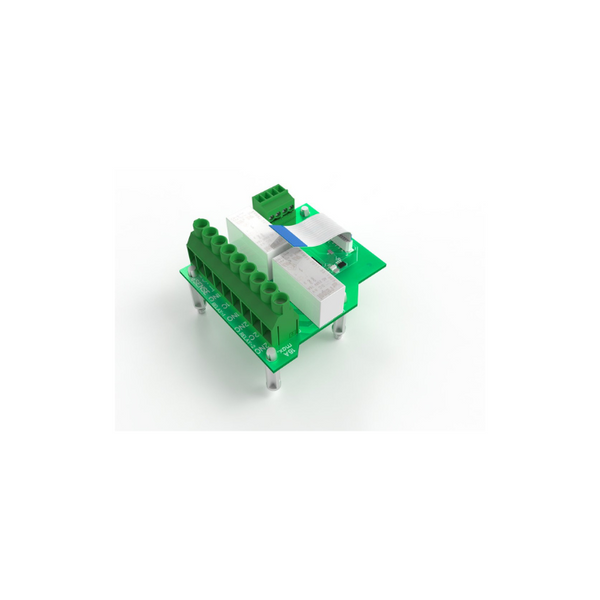

MYENERGI EDDI RELAY & SENSOR BOARD

Installing a Relay & Sensor board allows for many different wiring configurations and includes the following features:

• Two independent multi-function relays (16Amp)
• eSense input (isolated 230V detection for low tariff etc.)
• Two temperature sensor inputs (PT1000)

The two relays can be independently set for several different functions, or they can be set to operate as a pair. The relay functions include:

• Export Threshold
• Import Threshold
• Operate when heating
• De-stratification pump control
• Timed operation
• Fault signal for BMS systems

Please refer to the eddi manual (page 28) for fitting diagrams.
